Intercoms - (Previous Versions)


IP-SIP Panphone Series C

Anti-Vandalic IP-SIP intercom


Anti-vandalism intercom for IP-SIP extension standard, high resistance and durability with mechanical pushbutton and surface installation, for outdoor or indoor use.

It has the same functionalities of the Panphone Series 4 with different format of external presentation. It is equipped for a surface installation, it has a treated aluminum box, resistant baked paint, hermetic seal, security screws and mechanical push buttons.

It allows automatic dialing to PBX) IP-SIP extension standard through a mechanical press button.

In addition, it is available another version with Camera with different colour, that allows videocalls.

The IP-SIP Panphone Series C are totally POE and includes improvements in terms of audio quality and the ability to connect external devices (biometric readers, proximity, etc.) and manage I / O inputs and outputs for LEDs, Indicators and other devices. Additionally it includes an extra IP port, ideal for connecting other nearby network devices.

The version for a specific area is available to comply with the construction standard CTE SUA9 / SI 3-7.
Its physical characteristics also offer high strength and durability, allowing to be used outdoors to face the climet changes. It is perfect for SOS points, access control multiple sites or doors, intercoms for gas stations, specific areas, hotels and hospital environments among others (see common uses).

Similar versions of the product in different colors (Red and Yellow). Please go to Emergency SOS Panphone section.

NOTE: Product replaced by Full Duplex version. Please refer to IP-SIP Panphones Series C here.


FeaturesProduct VersionsCommon uses

Versions*:

  • Surface
  • 1 Button
  • With 1 IP POE port
  • With IP color camera

General features:

  • Handsfree intercom with hanging and automatic hang-up
  • Direct Connection to IP SIP of PBX centrales IP with SIP standard
  • Easy configuration through Web Server integrated in the equipment.
  • Plate with 2 independent dry contact relays. Ideal for doors that activate electrically or external devices (card readers, fingerprint, etc).
  • Opening doors remotely (activation of relays) with dailing code from any extension.
  • Resistant anti-vandal case for indoor or outdoor for environmental conditions.
  • Illuminated indication (LED) in call status.
  • Extra IP port for connection of other devices.
  • Wiring required, UTP and AC Power in cases of non-POE installation.
  • Winegard ports for other devices (biometrics, readers, etc.)
  • LED ports for indicators.
  • It works with Centrals (PBX) with Asterisk IP software and power stations such as Alcaltel, Avaya, Cisco, Elastix, Epygi, Denwa, Matrix, Nec, Panasonic, Siemens, Hiper PBX, Xorcom, Yeastar and Zycoo, and others.

*Note: visit ‘ product’s versions’ to check references.

IP-SIP Panphone Series C 1 Ethernet Port

Reference

C028

Color Matt Grey RAL 9006
Format Surface
Button or Keyboard 1 button
Dimensions (HxWxD) mm 188×115,9×40
Color Camera No

IP-SIP Panphone Series C with Color Camera

Reference

C234

Color Matt Grey RAL 9006
Format Surface
Button or Keyboard 1 button
Dimensions (HxWxD) mm 188×115,9×40
Color Camera Yes



  • Centralized access control for different sites or doors.
  • For attended or unattended gateways
  • Care and geriatric environments.
  • Parking and tolls
  • Gas stations, unattended service stations
  • For evelators
  • Emergency intercom on the high way (SOS points)
  • Public transportation stations
  • Accessibility systems for reduced mobility people.
  • Intercom in prisons
  • For specific areas or emergency in hotels, hospitals and other types of builidng
  • Vending machines
  • Intercoms for operating rooms and hospitals, etc.
  • Public address system
Quote request


Emergency-SOS IP-SIP Panphone

Anti-Vandalic IP-SIP intercom for Emergencies


Anti-vandalism intercom for IP-SIP extension standard, high resistance and durability with mechanical pushbutton and surface installation, for outdoor or indoor use.

It has the same functionalities of the Panphone Series 4 with different format of external presentation. It is equipped for a surface installation, it has a treated aluminum box, resistant baked paint, hermetic seal, security screws and mechanical push buttons.

It allows automatic dialing to (PBX) IP-SIP extension standard through a mechanical press button

Versions of Panphone Emergency SOS are available in different colors for different applications, services or intercom projects: Yellow (Information) and Red (Emergency or SOS).

In addition, it is available another version with Camera with different colour, that allows videocalls.

The Emergency-SOS IP-SIP Panphone are totally POE and includes improvements in terms of audio quality and the ability to connect external devices (biometric readers, proximity, etc.) and manage I / O inputs and outputs for LEDs, Indicators and other devices. Additionally it includes an extra IP port, ideal for connecting other nearby network devices.

The SOS Emergency version is available to comply with the CTE SUA9 / SI 3-7 building standard.

Its physical characteristics also offer high strength and durability, allowing to be used outdoors to face the climet changes. It is perfect for SOS points, access control multiple sites or doors, intercoms for gas stations, specific areas, hotels and hospital environments among others (see common uses).

NOTE: Product replaced by Full Duplex version. Please refer to Emergency SOS IP Panphones here.

FeaturesProduct VersionsCommon uses

Versions*:

  • Surface
  • 1 Button
  • With 1 IP POE port
  • With IP color camera
  • Yellow and Red

General features:

  • Handsfree intercom with hanging and automatic hang-up
  • Direct Connection to IP SIP of PBX centrales IP with SIP standard
  • Easy configuration through Web Server integrated in the equipment.
  • Plate with 2 independent dry contact relays. Ideal for doors that activate electrically or external devices (card readers, fingerprint, etc).
  • Opening doors remotely (activation of relays) with dailing code from any extension.
  • Resistant anti-vandal case for indoor or outdoor for environmental conditions.
  • Illuminated indication (LED) in call status.
  • Extra IP port for connection of other devices.
  • Wiring required, UTP and AC Power in cases of non-POE installation.
  • Winegard ports for other devices (biometrics, readers, etc.)
  • LED ports for indicators.
  • It works with Centrals (PBX) with Asterisk IP software and power stations such as Alcaltel, Avaya, Cisco, Elastix, Epygi, Denwa, Matrix, Nec, Panasonic, Siemens, Hiper PBX, Xorcom, Yeastar and Zycoo, and others.

*Note: visit ‘ product’s versions’ to check references.

Emergency-SOS IP-SIP Panphone IP-SIP, 1 Ethernet Port

Referencia

C028-A-E

C028-R-E

Color Yellow RAL 1023* Red RAL 3020*
Format Surface
Button or Keyboard 1 button
Dimensions (HxWxD) mm 188×115,9×40
Color Camera No
Accessibility Braille and light indication (Led) for call status
Comply with CTE SUA9/SI 3-7 Yes

Emergency-SOS IP-SIP Panphone IP-SIP, with Color Camera

Reference

C234-A-E

C234-R-E

Color Yellow RAL 1023* Red RAL 3020*
Format Surface
Button or Numeric Keyboard 1 button
Dimensions (HxWxD) mm 188×115,9×40
Color Camera Yes
Accessibility Braille and light indication (Led) for call status
Comply with CTE SUA9/SI 3-7 Yes



  • Centralized access control for different sites or doors.
  • For attended or unattended gateways
  • Remote sites and of difficult access.
  • Parking and tolls
  • Gas stations, unattended service stations
  • For parking space
  • For evelators
  • Emergency intercom on the high way (SOS points)
  • Public transportation stations
  • Accessibility systems for reduced mobility people.
  • For specific areas or emergency in hotels, hospitals and other types of builidng
  • Vending machines

Datasheet ENG




IP-SIP Panphone Series 4

Anti-Vandalic IP-SIP intercom


Anti-vandalism intercom for IP-SIP extension standard, high resistance and durability with piezoelectric switches, for outdoor or indoor use.

It allows automatic dialing to (PBX) IP-SIP extension standard through a mechanical press button or keyboard. The IP Panphone Series 4 are fully POE and include an improving features compared to the 3 series.

Now available IP Panphone versions with Color Camera that allows video calls and the another version with Card Reader to facilitate access where required. It also includes improvements in terms of audio quality and the ability to connect external devices (biometric readers, proximity, etc.) and manage I / O inputs and outputs for LEDs, Indicators and other devices. Additionally it includes an extra IP port, ideal for connecting other nearby network devices.

It has a IP-55 casing and its installation versatility, they can be used outdoors and in hygienic environments that require constant cleaning. It is perfect for SOS points, access control multiple sites or doors, intercoms for gas stations, specific areas, hotels and hospital environments and other types of building (see common uses).

NOTE: Product replaced by Full Duplex version. Please refer to IP-SIP Panphones Series 4 Full Duplex here.


FeaturesProduct VersionsCommon uses

Versions*:

  • Surface or Flush mount
  • Numeric keyboard or button
  • With 1 IP POE port
  • With IP Color Camera
  • With Card reader
  • With Camera and card reader
  • Only PCB card

General features:

  • Handsfree intercom with hanging and automatic hang-up
  • Direct Connection to IP SIP of PBX centrales IP with SIP standard
  • Easy configuration through Web Server integrated in the equipment.
  • Plate with 2 independent dry contact relays. Ideal for doors that activate electrically or external devices (card readers, fingerprint, etc).
  • Opening doors remotely (activation of relays) with dailing code from any extension.
  • IP-68 Resistant anti-vandal case for indoor or outdoor for environmental and hygenic conditions.
  • the Keyboard version allows to open doors through a code.
  • Extra IP port for connection of other devices.
  • Wiring required, UTP and AC Power in cases of non-POE installation.
  • Winegard ports for other devices (biometrics, readers, etc.)
  • LED ports for indicators.
  • It works with Centrals (PBX) with Asterisk IP software and power stations such as Alcaltel, Avaya, Cisco, Elastix, Epygi, Denwa, Matrix, Nec, Panasonic, Siemens, Hiper PBX, Xorcom, Yeastar and Zycoo, and others.

*Note: visit ‘ product’s versions’ to check references.

IP-SIP Panphone 1 Ethernet Port

Reference

4028i

4029i

4030i

4031i

Format Surface Flush Mount
Button or piezo-electric Keyboard 1 button Keyboard 1 button Keyboard
Dimensions (HxWxD) mm 187x104x32 External 217,41×128,8×8,6
Internal 180×91,40×30
Color Camera No
Card Reader No

IP-SIP Panphone with Proximity Card Reader

Reference

4238i

4239i

4240i

4241i

Format Surface Flush Mount
Button or piezo-electric Keyboard 1 button Keyboard 1 button Keyboard
Dimensions (HxWxD) mm 187x104x32 External 217,41×128,8×8,6
Internal 180×91,40×30
Color Camera No
Card Reader Yes

IP-SIP Panphone with Color Camera

Reference

4234i

4235i

4236i

4237i

Format Surface Flush Mount
Button or piezo-electric Keyboard 1 button Keyboard 1 button Keyboard
Dimensions (HxWxD) mm 187x104x32 External 217,41×128,8×8,6
Internal 180×91,40×30
Color Camera Yes
Card Reader No

IP-SIP Panphone with Card Reader and Camera

Reference

4242i

4243i

4244i

4245i

Format Surface Flush Mount
Button or piezo-electric Keyboard 1 button Keyboard 1 button Keyboard
Dimensions (HxWxD) mm 187x104x32 External 217,41×128,8×8,6
Internal 180×91,40×30
Color Camera Yes
Card Reader Yes
  • Centralized access control for different sites or doors.
  • For attended or unattended gateways
  • Care and geriatric environments.
  • Parking and tolls
  • Gas stations, unattended service stations
  • For evelators
  • Emergency intercom on the high way (SOS points)
  • Public transportation stations
  • Accessibility systems for reduced mobility people.
  • Intercom in prisons
  • For specific areas or emergency in hotels, hospitals and other types of builidng
  • Vending machines
  • Intercoms for operating rooms and hospitals, etc.
  • Public address system


WIFI Panphone Series 4

Anti-Vandalic WIFI IP-SIP intercom


Anti-vandalism WIFI for IP-SIP extension standard, high resistance and durability with piezoelectric switches, for outdoor or indoor use.



It has the same technical charactrestics of the Panphone IP-SIP series 4 plus the WIFI, that could be usfel for places that hard to have cables. It allows automatic dialing to (PBX) IP-SIP extension standard through a mechanical press button or keyboard without wire.

The Panphone card reader version (for access control) is available. It has great audio quality and allows you to connect external devices (biometric readers, proximity, etc.) and manage I / O inputs and outputs for LEDs, Indicators and other devices. It also includes an IP port, to connect IP devices to the data network without additional wiring.

It has an IP-55 housing and its installation versatility, they can be used outdoors at any point with WIFI network coverage. Its approximate wireless range is 100 meters in open spaces and 50 in closed spaces. It is perfect for SOS points, access control multiple sites or doors, intercoms for parking, gas stations, specific areas, hotels and hospital environments among others (see common uses).

NOTE: Product replaced by Full Duplex version. Please refer to WIFI Panphones Full Dúplex here.


FeaturesProduct VersionsCommon uses

Versions*:

  • Surface or Flush mount
  • Numeric keyboard or button
  • With Card reader

General features:

  • Handsfree intercom with hanging and automatic hang-up
  • Direct Connection to IP SIP of PBX centrales IP with SIP standard via WIFI
  • Easy configuration through Web Server integrated in the equipment.
  • Plate with 2 independent dry contact relays. Ideal for doors that activate electrically or external devices (card readers, fingerprint, etc).
  • Opening doors remotely (activation of relays) with dailing code from any extension.
  • IP-55 Resistant anti-vandal case for indoor or outdoor for environmental and hygenic conditions.
  • The Keyboard version allows to open doors through a code.
  • Extra IP port for connection of other devices.
  • Approximate wireless range of 100 meters in open spaces and 50 in closed spaces.
  • Wiring required, only power.
  • Winegard ports for other devices (biometrics, readers, etc.)
  • LED ports for indicators.
  • It works with Centrals (PBX) with Asterisk IP software and power stations such as Alcaltel, Avaya, Cisco, Elastix, Epygi, Denwa, Matrix, Nec, Panasonic, Siemens, Hiper PBX, Xorcom, Yeastar and Zycoo, and others.

*Note: visit ‘ product’s versions’ to check references.

WIFI Panphone

Reference

4246i

4247i

4248i

4249i

Format Surface Flush Mount
Button or piezo-electric Keyboard 1 button Keyboard 1 button Keyboard
Dimensions (HxWxD) mm 187x104x32 External 217,41×128,8×8,6
Internal 180×91,40×30
Color Camera No
Card Reader No

WIFI Panphone with Card Reader

Reference

4250i

4251i

4252i

4253i

Format Surface Flush Mount
Button or piezo-electric Keyboard 1 button Keyboard 1 button Keyboard
Dimensions (HxWxD) mm 187x104x32 External 217,41×128,8×8,6
Internal 180×91,40×30
Color Camera No
Card Reader Yes
  • Centralized access control for different sites or doors.
  • For attended or unattended gateways
  • Care and geriatric environments.
  • Parking and tolls
  • Gas stations, unattended service stations
  • For evelators
  • Emergency intercom on the high way (SOS points)
  • Public transportation stations
  • Accessibility systems for reduced mobility people.
  • Intercom in prisons
  • For specific areas or emergency in hotels, hospitals and other types of builidng
  • Vending machines
  • Intercoms for operating rooms and hospitals, etc.
  • Public address system

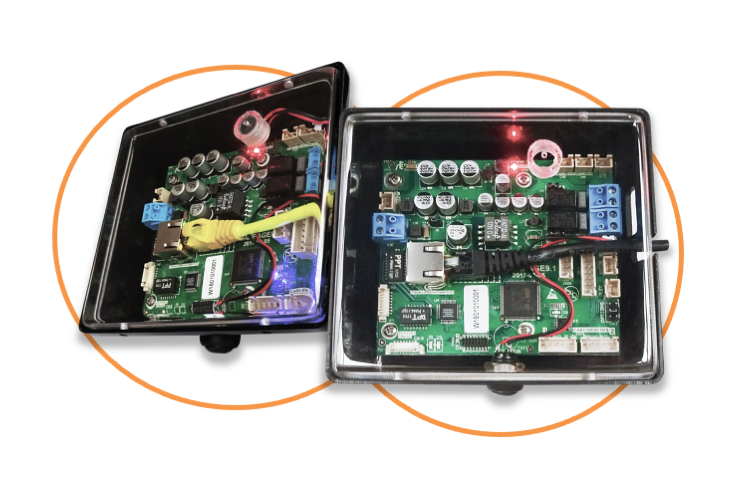

IP-SIP Card for Security Anti-intrusion System

IP-SIP Card for Security Anti-intrusion System


IP-SIP Card for security anti-intrusion systems, which is additionally installed inside the access door as a secondary card.

This board has the control of the opening relays that are activated remotely thanks to the main card. This system prevents physically access for the activation of the door opener relays of the intercom that is generally located outside.

This system is mainly used in high security applications and environments, such as penitentiary centers, bank headquarters, loading and unloading areas, schools, company security areas and industrial warehouses. (see common uses).

The IP-SIP security card is delivered assembled in a plastic box and includes an external power supply.

The card has all the intercom features of Panphone IP-SIP devices, therefore it allows automatic dialing to standard IP-SIP PBX extension by pressing a button or external keyboard.

Like the basic IP-SIP PCB (Ref. 3032i), it has an extra Ethernet port, 2 additional relays and a 20W speaker.

It is also possible to connect to it external elements such as an IP camera, readers (biometric, proximity, etc.) and can manage I/O inputs and outputs for LEDs, Indicators and other devices.



FeaturesProduct VersionsCommon uses

Versions*:

  • Surface installation box
  • With 1 IP Port PoE

General Features:

  • Additional board to Intercom System
  • Assembled in Plastic Box
  • Handsfree intercom with hanging and automatic hang-up
  • Direct Connection to IP SIP of PBX centrales IP with SIP standard
  • Easy configuration through Web Server integrated in the equipment.
  • Board with 2 independent dry contact relays. Ideal for doors that activate electrically or external devices (card readers, fingerprint, etc).
  • Opening doors remotely (activation of relays) with dailing code from any extension.
  • Extra IP port for connection of other devices.
  • Wiring required, UTP and AC Power in cases of non-POE installation.
  • Winegard ports for other devices (biometrics, readers, etc.)
  • LED ports for indicators.
  • It works with IP-PBX with Asterisk software and IP-PBX like Alcaltel, Avaya, Cisco, Elastix, Epygi, Denwa, Matrix, Nec, Panasonic, Siemens, Hiper PBX, Xorcom, Yeastar and Zycoo, among others.

*Note: visit the section “Product Versions” to see references.

IP-SIP Card for Security Anti-intrusion System

Reference

3032i-SEG

Format Surface
Button or numeric keypad Not included
Dimensions  (HxWxD) mm 105x105x35 (Box)
Color Camera Not included
Card Reader Not included
  • Penitentiary centers.
  • Bank branches
  • Industrial Ships.
  • Business headquarters.
  • Centralized access control for different offices or doors.
  • Loading and Unloading Zones.
  • Schools.
  • Restricted áreas.




Panphone GSM

GSM Panphone Series C

Anti-Vandalic GSM intercom


Anti-vandalism intercom for Mobile Cellular line, high strength and durability with mechanical pushbutton and surface installation, for outdoor or indoor use.

It is equipped for a surface installation, it has a treated aluminum box, resistant baked paint, hermetic seal, security screws and mechanical push buttons.

It is ideal for establishments where wiring is not possible or required (voice or data), allowing greater versatility and fast in installation. Dialing automatic to a phone number by pressing the button through the cellular mobile network. It can be used as an intercom and as a remote access control.

It allows dialing up to 10 pre-configured numbers that are dialed sequentially in case there is an error in the call or no answer.

It has 2 dry contact relays that operate independently, for connection of electric doors, which can be activated from remote telephone (with code, SMS or missed call). They can also be activated from external devices (such as card readers, biometric, proximity, etc.), since it has digital inputs to which buttons and sensors can also be connected. It can generate alarms by calling a telephone number with the activation of some sensor input.

The version of the specific area is available and it is comply with the construction standard CTE SUA9 / SI 3-7.

Now GSM intercoms can have pre-recorded messages that indicate the status or activity. These messages can be in several languages, Spanish (Spanish), English, Portuguese and Catalan, are available, other languages ​​upon request.

Its physical characteristics also offer high strength and durability, allowing to be used outdoors to face the climet changes. It is perfect for SOS points, access control multiple sites or doors, intercoms for gas stations, specific areas, hotels and hospital environments and so on (see common uses).

Available similar versions of the product in different colors (Red and Yellow). Please go to Emergency SOS Panphone section.

NOTE: Product replaced by the GSM 4G/LTE version. Please see GSM 4G/LTE Panphones here.


FeaturesProduct VersionsCommon uses

Available Versions*:

  • Surface
  • 1 Button

General features:

  • Handsfree intercom with hanging and automatic hang-up
  • Direct connection via telephone by Cellular Mobile Line.
  • Sequence dialing to 10 programmed numbers.
  • Illuminated indication (LED) in call status.
  • With 2 independent dry contact relays. Ideal for doors that activate electrically or external devices (card readers, fingerprint, etc).
  • Opening doors remotely (activation of relays) with dailing code from any telephone or by making a call or SMS
  • Resistant anti-vandal case format, for indoor or outdoor for environmental conditions.
  • Contact input (sensors, alarms, etc.) to make a call.
  • Wiring, AC power
  • It works with the most common mobile cellular network frequencies (850, 900, 1800 and 1900 Mhz), which allows its use in coverage areas of different networks.

*Note: Note, visit ‘ product’s versions’ to check references.

GSM Panphone Series C

Reference

C040

Color Matt Grey RAL 9006
Format Surface
Button or Keyboard 1 button
Dimensions (HxWxD) mm 188×115,9×40
Color Camera No

*Note: Available for projects with minimum quantities. Please check minimum orders with your commercial.

  • Centralized access control for different sites or doors.
  • For attended or unattended gateways
  • Remote sites and of difficult access.
  • Parking and tolls
  • Gas stations, unattended service stations
  • For parking space
  • For evelators
  • Emergency intercom on the high way (SOS points)
  • Public transportation stations
  • Accessibility systems for reduced mobility people.
  • For specific areas or emergency in hotels, hospitals and other types of builidng
  • Vending machines
Quote request


Emergency-SOS GSM Panphone

Anti-Vandalic GSM intercom for Emergencies


Anti-vandalism intercom for Mobile Cellular line, high strength and durability with mechanical pushbutton and surface installation, for outdoor or indoor use.

It is equipped for a surface installation, it has a treated aluminum box, resistant baked paint, hermetic seal, security screws and mechanical push buttons.
Versions of Panphone Emergency SOS are available in different colors for different applications, services or intercom projects: Yellow (Information) and Red (Emergency or SOS).
It is ideal for establishments where wiring is not possible or required (voice or data), allowing greater versatility and fast in installation. Dialing automatic to a phone number by pressing the button through the cellular mobile network. It can be used as an intercom and as a remote access control.

It allows dialing up to 10 pre-configured numbers that are dialed sequentially in case there is an error in the call or no answer.
It has 2 dry contact relays that operate independently, for connection of electric doors, which can be activated from remote telephone (with code, SMS or missed call). They can also be activated from external devices (such as card readers, biometric, proximity, etc.), since it has digital inputs to which buttons and sensors can also be connected. It can generate alarms by calling a telephone number with the activation of some sensor input.

The SOS Emergency version is available to comply with the CTE SUA9 / SI 3-7 building standard.

Now GSM intercoms can have pre-recorded messages that indicate the status or activity. These messages can be in several languages, Spanish (Spanish), English, Portuguese and Catalan, are available, other languages ​​upon request.

Its physical characteristics also offer high strength and durability, allowing to be used outdoors to face the climet changes. It is perfect for SOS points, access control multiple sites or doors, intercoms for gas stations, specific areas, hotels and hospital environments and so on (see common uses).
NOTE: Product replaced by the GSM 4G/LTE version. Please see GSM 4G/LTE Panphones here.


FeaturesProduct VersionsCommon uses

Available Versions*:

  • Surface
  • 1 Button
  • Yellow and Red

General features:

  • Handsfree intercom with hanging and automatic hang-up
  • Direct connection via telephone by Cellular Mobile Line.
  • Sequence dialing to 10 programmed numbers.
  • Illuminated indication (LED) in call status.
  • With 2 independent dry contact relays. Ideal for doors that activate electrically or external devices (card readers, fingerprint, etc).
  • Opening doors remotely (activation of relays) with dailing code from any telephone or by making a call or SMS
  • Resistant anti-vandal case format, for indoor or outdoor for environmental conditions.
  • Contact input (sensors, alarms, etc.) to make a call.
  • Wiring, AC power
  • It works with the most common mobile cellular network frequencies (850, 900, 1800 and 1900 Mhz), which allows its use in coverage areas of different networks.

*Note: Note, visit ‘ product’s versions’ to check references.

Emergency-SOS GSM Panphone

Reference

C006-A-E

C006-R-E

Color Yellow RAL 1023 Red RAL 3020
Formato Surface
Button or piezo-electric Keyboard 1 button
Dimensions (HxWxD) mm 188×115,9×40
Color Camera No
Accessibility Braille and light indication (Led) for call status
Comply with CTE SUA9/SI 3-7 Yes



  • Centralized access control for different sites or doors.
  • For attended or unattended gateways
  • Remote sites and of difficult access.
  • Parking and tolls
  • Gas stations, unattended service stations
  • For parking space
  • For evelators
  • Emergency intercom on the high way (SOS points)
  • Public transportation stations
  • Accessibility systems for reduced mobility people.
  • For specific areas or emergency in hotels, hospitals and other types of builidng
  • Vending machines
Quote request


GSM Panphone Series 4

Anti-Vandalic GSM intercom


Anti-vandalism intercom for Mobile Cellular line, high strength and durability with with piezoelectric switches and surface installation, for outdoor or indoor use.



It is ideal for establishments where wiring is not possible or required (voice or data), allowing greater versatility and fast in installation. Dialing automatic to a phone number by pressing the button through the cellular mobile network. It can be used as an intercom and as a remote access control.

It allows dialing up to 10 pre-configured numbers that are dialed sequentially in case there is an error in the call or no answer.

It has 2 dry contact relays that operate independently, for connection of electric doors, which can be activated from remote telephone (with code, SMS or missed call). It can also be activated from external devices (such as card readers, biometric, proximity, etc.), since it has digital inputs to which buttons and sensors can also be connected. It can generate alarms by calling a telephone number with the activation of some sensor input.

Now GSM intercoms can have pre-recorded messages that indicate the status or activity. These messages can be in several languages, Spanish (Spanish), English, Portuguese and Catalan, are available, other languages ​​upon request.

It has an IP-55 housing, it can be used outdoors in places inhospitable. It is perfect for SOS points, access control multiple sites or doors, intercoms for gas stations, specific areas, hotels and hospital environments and so on (see common uses).

NOTE: Product replaced by the GSM 4G/LTE version. Please see GSM 4G/LTE Panphones here.


FeaturesProduct VersionsCommon uses

Available Versions*:

  • Surface or Flush Mount
  • Numeric keyboard or button
  • Only PCB Card

General features:

  • Handsfree intercom with hanging and automatic hang-up
  • Direct connection via telephone by Cellular Mobile Line.
  • Sequence dialing to 10 programmed numbers.
  • With 2 independent dry contact relays. Ideal for doors that activate electrically or external devices (card readers, fingerprint, etc).
  • Opening doors remotely (activation of relays) with dailing code from any telephone or by making a call or SMS
  • IP-55 Resistant anti-vandal case for indoor or outdoor for environmental and hygenic conditions.
  • Contact input (sensors, alarms, etc.) to make a call.
  • The Keyboard version allows to open doors through a code
  • Wiring, AC power
  • It works with the most common mobile cellular network frequencies (850, 900, 1800 and 1900 Mhz), which allows its use in coverage areas of different networks.

*Note: Note, visit ‘ product’s versions’ to check references.

GSM Panphone Series 4

Reference

4040

4041

4042

4043

4039

Formato Surface Flush Mount PCB Card
Button or piezo-electric Keyboard 1 button Keyboard 1 button Keyboard N/A
Dimensions (HxWxD) mm 187x104x32 External 217,41×128,8×8,6
Internal 180×91,40×30
100x85x15
  • Control de acceso para distintas sedes o puertas.
  • Garitas o porterías remotas desatendidas.
  • Sedes remotas y de difícil acceso.
  • Barreras de parking y peajes.
  • Gasolineras, estaciones de servicio desatendidas.
  • Garajes.
  • Ascensores.
  • Comunicadores de emergencia en carreteras (puntos SOS).
  • Estaciones de transporte publico.
  • Sistemas de accesibilidad para personas de movilidad reducida.
  • Zonas Refugio o de Emergencia en hoteles, hospitales y otro tipo de edificaciones.
  • Maquinas de vending.
Quote request


GSM Security Panphone

Anti-Vandalic Security GSM intercom


Anti-vandal and Security intercom for Mobile Cellular line, high strength and durability with with piezoelectric Call button, for outdoor or indoor use.

It is the Panphone anti-vandal security version, with a completely flat surface without holes, for specific security applications or applications that do not require a camera or card reader in the same device.

It is ideal for establishments where wiring is not possible or required (voice or data), allowing greater versatility and fast in installation.

Dialing automatic to a phone number by pressing the button through the cellular mobile network. It can be used as an intercom and as a remote access control.

It allows dialing up to 10 pre-configured numbers that are dialed sequentially in case there is an error in the call or no answer.

It has 2 dry contact relays that operate independently, for connection of electric doors, which can be activated from remote telephone (with code, SMS or missed call). It can also be activated from external devices (such as card readers, biometric, proximity, etc.), since it has digital inputs to which buttons and sensors can also be connected. It can generate alarms by calling a telephone number with the activation of some sensor input.

Now GSM intercoms can have pre-recorded messages that indicate the status or activity. These messages can be in several languages, Spanish (Spanish), English, Portuguese and Catalan, are available, other languages ​​upon request.

Thanks to its IP-55 housing, it can be used outdoors in places inhospitable and in hygienic environments that require constant cleaning.

It is perfect for security applications among other access applications, for example, exterior doors for buildings or houses, prisons, multiple office locations or doors, garages and hospital environments (see common uses).
NOTE: Product replaced by the GSM 4G/LTE version. Please see Panphones GSM 4G/LTE here.


FeaturesProduct VersionsCommon uses

General features:

  • Handsfree intercom with hanging and automatic hang-up
  • Flat surface without holes for flush mounting
  • A piezo-electric call button
  • Direct connection via telephone by Cellular Mobile Line.
  • Sequence dialing to 10 programmed numbers.
  • With 2 independent dry contact relays. Ideal for doors that activate electrically or external devices (card readers, fingerprint, etc).
  • Opening doors remotely (activation of relays) with dailing code from any telephone or by making a call or SMS
  • IP-55 Resistant anti-vandal case for indoor or outdoor for environmental and hygenic conditions.
  • Contact input (sensors, alarms, etc.) to make a call.
  • Wiring, AC power
  • It works with the most common mobile cellular network frequencies (850, 900, 1800 and 1900 Mhz), which allows its use in coverage areas of different networks.

*Note: Note, visit ‘ product’s versions’ to check references.

GSM Security Panphone

Reference

5330

Format Flush Mount
Button or piezo-electric Keyboard 1 button
Dimensions (HxWxD) mm External 217,41×128,8×8,6
Interior 180×91,40×30
Camera No
Card Reader No
  • Control de acceso para distintas sedes o puertas.
  • Garitas o porterías remotas desatendidas.
  • Sedes remotas y de difícil acceso.
  • Barreras de parking y peajes.
  • Gasolineras, estaciones de servicio desatendidas.
  • Garajes.
  • Ascensores.
  • Comunicadores de emergencia en carreteras (puntos SOS).
  • Estaciones de transporte publico.
  • Sistemas de accesibilidad para personas de movilidad reducida.
  • Zonas Refugio o de Emergencia en hoteles, hospitales y otro tipo de edificaciones.
  • Maquinas de vending.


Quote request


GSM Card

Intercom Card for GSM Mobile Cellular line


Intercom Card for standard Mobile Cellular line

Automatic dial to a phone number by pressing external button or keyboard through the cellular mobile network. It can be used as intercom or remote access control.

It is ideal for establishments where wiring is not possible or required (voice or data), allowing greater versatility and fast in installation.

It allows dialing up to 10 pre-configured numbers that are dialed sequentially in case there is an error in the call or no answer.

It has specific pin connectors for external devices such as keyboard, pushbutton, loudspeaker and proximity card reader.

It has 2 dry contact relays that operate independently, for connection of electric doors, which can be activated from remote telephone (with code, SMS or missed call). They can also be activated from external devices (such as card readers, biometric, proximity, etc.), since it has digital inputs to which buttons and sensors can also be connected. It can generate alarms by calling a telephone number with the activation of some sensor input.

GSM intercom cards can have pre-recorded messages that indicate the status or activity. These messages can be in several languages, Spanish (Spanish), English, Portuguese and Catalan, are available, other languages ​​upon request.

It is perfect for SOS points, access control multiple sites or doors, intercoms for gas stations, specific areas, hotels and hospital environments and so on (see common uses).

Any customization is possible , since the integrated PCB card allows installation in any preferred device, box, or structure, allowing its use in multiple applications and projects. It can be a component within a set of more complex systems.
It can be used to develop products or manufacture solutions using the branding of the integrator.

NOTE: Product replaced by the GSM 4G/LTE version. Please see GSM 4G/LTE Panphones here.


FeaturesProduct VersionsCommon uses

Available Versions*:

  • GSM PCB Card

General features:

  • Handsfree intercom with hanging and automatic hang-up
  • Direct connection via telephone by Cellular Mobile Line.
  • Connectors for external devices such as keyboard, pushbutton, loudspeaker and proximity card reader.
  • Sequence dialing to 10 programmed numbers.
  • With 2 independent dry contact relays. Ideal for doors that activate electrically or external devices (card readers, fingerprint, etc).
  • Opening doors remotely (activation of relays) with dailing code from any telephone or by making a call or SMS
  • Opening doors by dailing code from external keyboard
  • PCB Card Format for any Case, device or structure.
  • Loudspeaker included of 1W output
  • Contact input (sensors, alarms, etc.) to make a call.
  • Wiring, AC power
  • It works with the most common mobile cellular network frequencies (850, 900, 1800 and 1900 Mhz), which allows its use in coverage areas of different networks.

*Note: visit ‘product’s versions’ to check references.

GSM PCB Card

Reference

4039

Communication Protocol GSM
Mobile Network Communication Yes
Frequency Bands 850, 900, 1800 y 1900 Mhz Yes
Dimensions (HxWxD) mm 100x85x15 mm
  • Centralized access control for multiple sites or doors.
  • Difficult access Remote sites.
  • Unattended gatehouses or guardhouses.
  • Parking barriers and Tollgates.
  • Healthcare and geriatric environments
  • Gas stations, unattended service stations
  • For elevators and kiosks
  • Emergency intercom on the high way (SOS points)
  • Public transportation stations
  • Accessibility systems for reduced mobility people.
  • Intercom in prisons
  • For specific areas or emergency in hotels, hospitals and other types of builidng
  • Intercoms for operating rooms and hospitals, etc.
  • Vending machines

Quote request

Go to Top
