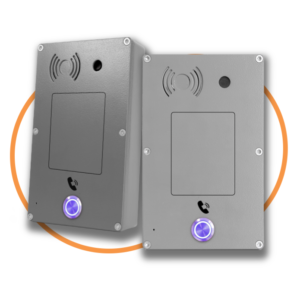

Analog Panphone

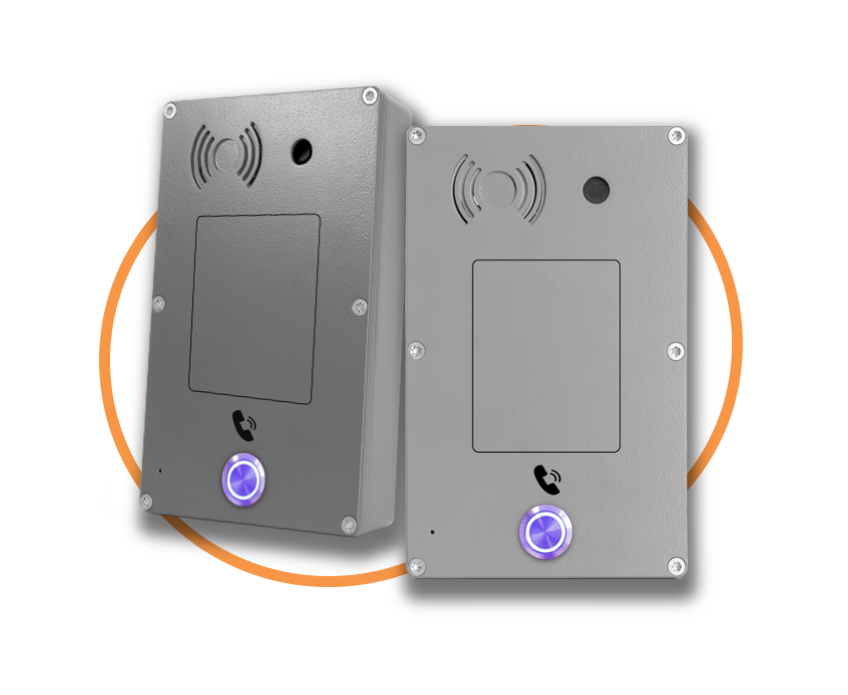

Analog Panphone Series C

Posted: September 14, 2017



Antivandalic Analog Intercom

Anti-vandalism intercom for standard Analog extension, high resistance and durability with mechanical pushbutton and surface installation, for outdoor or indoor use.

It is equipped for a surface installation, it has a treated aluminum box, resistant baked paint, hermetic seal, security screws and mechanical push buttons. It allows automatic dialing to standard PBX extension through a mechanical press button and can be used as an intercom and as an access control.

In addition, it is available another version with Camera with different colour, that allows videocalls.

It has 2 dry contact relays that work independently, for electric door’s connection, which can be activated from remote extension or in the same keyboard. It can also be activated from external devices (such as card readers, biometric, proximity, etc.), since it has digital inputs to which buttons and sensors can also be connected.
The version for a specific area is available to comply with the construction standard CTE SUA9 / SI 3-7.

Available similar versions of the product in different colors (Red and Yellow). Please go to Emergency SOS Panphone section.

FeaturesProduct VersionsCommon uses

Available Versions*:

  • Surface
  • 1 Button
  • With IP color camera

General features:

  • Handsfree intercom with hanging and automatic hang-up
  • Direct Connection to analog of PBX EXT standard
  • With 2 independent dry contact relays. Ideal for doors that activate electrically or external devices (card readers, fingerprint, etc).
  • Opening doors remotely (activation of relays) with dailing code from any extension.
  • Resistant anti-vandal case format, for indoor or outdoor for environmental conditions.
  • Illuminated indication (LED) in call status.
  • Wiring, needs 2 wires and AC power, in case a version with camera, so add 1 UTP

  • It works with all PBX that has a conventional analog EXT.

*Note: visit ‘ product’s versions’ to check references.

Analog Panphone Series C without Camera

Reference

C006
Color Matt Grey RAL 9006
Format Surface
Button or Keyboard 1 button
Dimensions (HxWxD) mm 188×115,9×40
Color Camera No

Analog Panphone Series C with Camera

Reference

C008
Color Matt Grey RAL 9006
Format Surface
Button or Keyboard 1 button
Dimensions (HxWxD) mm 188×115,9×40
Color Camera Yes
  • Centralized access control for different sites or doors.
  • For attended or unattended gateways
  • Care and geriatric environments.
  • Parking and tolls
  • Gas stations, unattended service stations
  • For evelators
  • Emergency intercom on the high way (SOS points)
  • Public transportation stations
  • Accessibility systems for reduced mobility people.
  • Intercom in prisons
  • For specific areas or emergency in hotels, hospitals and other types of builidng
  • Vending machines
  • Intercoms for operating rooms and hospitals, etc.
  • Public address system
Datasheet ENG
Quote request

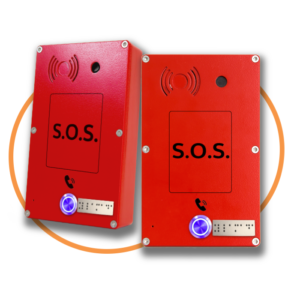

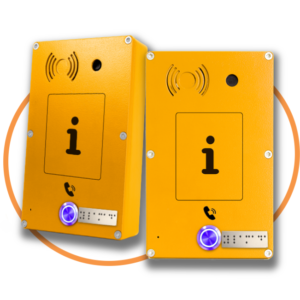

Emergency-SOS Analog Panphone

Posted: October 22, 2019

Antivandalic Analog Intercom for Emergencies

Anti-vandalism intercom for standard Analog extension, high resistance and durability with mechanical pushbutton and surface installation, for outdoor or indoor use.

It is equipped for a surface installation, it has a treated aluminum box, resistant baked paint, hermetic seal, security screws and mechanical push buttons. It allows automatic dialing to standard PBX extension through a mechanical press button and can be used as an intercom and as an access control.

Versions of Panphone Emergency SOS are available in different colors for different applications, services or intercom projects: Yellow (Information) and Red (Emergency or SOS).

In addition, it is available another version with Camera with different colour, that allows videocalls.

It has 2 dry contact relays that work independently, for electric door’s connection, which can be activated from remote extension or in the same keyboard. It can also be activated from external devices (such as card readers, biometric, proximity, etc.), since it has digital inputs to which buttons and sensors can also be connected.

The version for a specific area is available to comply with the construction standard CTE SUA9 / SI 3-7.

Its physical characteristics also offer high strength and durability, allowing to be used outdoors to face the climet changes. It is perfect for SOS points, access control multiple sites or doors, intercoms for gas stations, specific areas, hotels and hospital environments among others (see common uses).

FeaturesProduct VersionsCommon uses

Available Versions*:

  • Surface
  • 1 Button
  • With IP color camera
  • Yellow and Red

General features:

  • Handsfree intercom with hanging and automatic hang-up
  • Direct Connection to analog of PBX EXT standard
  • With 2 independent dry contact relays. Ideal for doors that activate electrically or external devices (card readers, fingerprint, etc).
  • Opening doors remotely (activation of relays) with dailing code from any extension.
  • Resistant anti-vandal case format, for indoor or outdoor for environmental conditions.
  • Illuminated indication (LED) in call status.
  • Wiring, needs 2 wires and AC power, in case a version with camera, so add 1 UTP

  • It works with all PBX that has a conventional analog EXT.

*Note: visit ‘ product’s versions’ to check references.

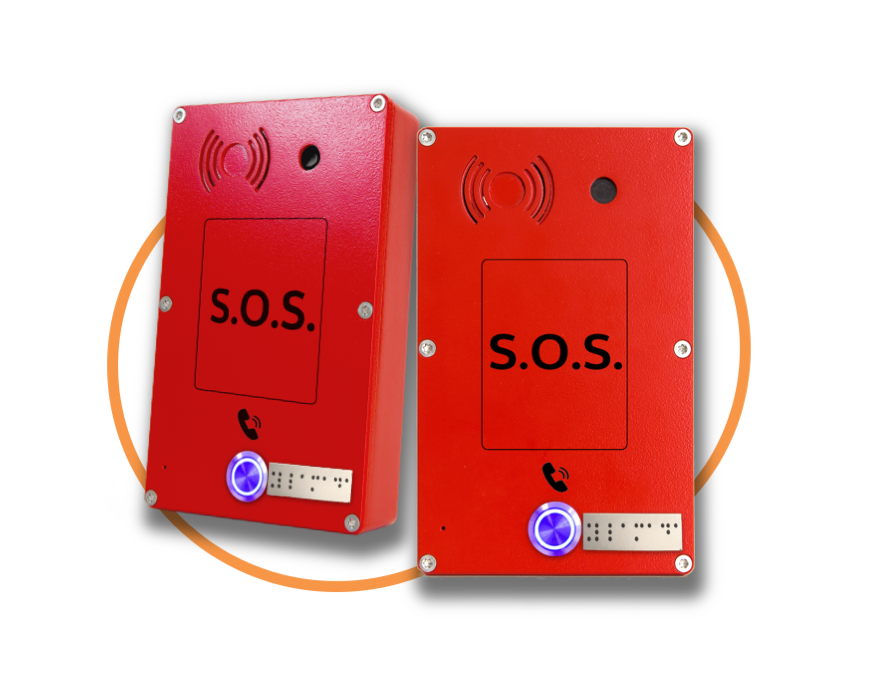

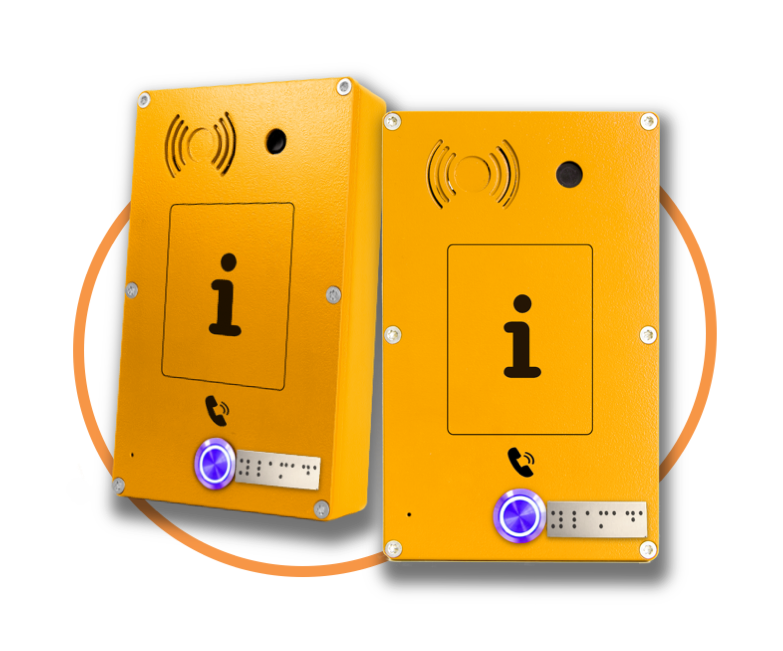

Emergency-SOS Analog Panphone without Camera

Reference

C006-A-E

C006-R-E
Color Yellow RAL 1023* Red RAL 3020*
Format Surface
Button or Keyboard 1 button
Dimensiones (HxWxD) mm 188×115,9×40
Color Camera No
Accessibility Braille and light indication (Led) for call status
Comply with CTE SUA9/SI 3-7 Yes

Emergency-SOS Analog Panphone with Camera

Reference

C008-A-E

C008-R-E
Color Yellow RAL 1023* Red RAL 3020*
Formato Surface
Button or Keyboard 1 button
Dimensiones (HxWxD) mm 188×115,9×40
Color Camera Yes
Accessibility Braille and light indication (Led) for call status
Comply with CTE SUA9/SI 3-7 Yes



  • Centralized access control for different sites or doors.
  • For attended or unattended gateways
  • Care and geriatric environments.
  • Parking and tolls
  • Gas stations, unattended service stations
  • For evelators
  • Emergency intercom on the high way (SOS points)
  • Public transportation stations
  • Accessibility systems for reduced mobility people.
  • Intercom in prisons
  • For specific areas or emergency in hotels, hospitals and other types of builidng
  • Vending machines
  • Intercoms for operating rooms and hospitals, etc.
  • Public address system
Datasheet ENG
Quote request

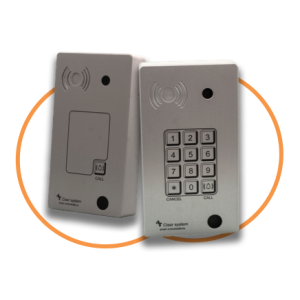

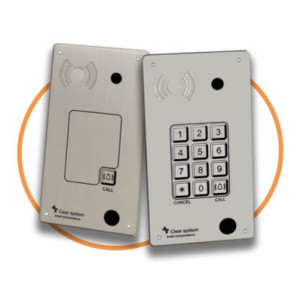

Analog Panphone Series 4

Posted: February 5, 2016

Anti-Vandalic Analog intercom

Anti-vandalism intercom for standard Analog extension, high resistance and durability with piezoelectric switches, for outdoor or indoor use.



It allows automatic dialing to PBX extension standard through a mechanical press button or the keyboard and can be used as an intercom and as an access control with a dialing code in case of keyboard type.

It is available Analog Panphone series 4 type with keyboards and with press button and if it has IP color camera or not.

It has 2 dry contact relays that work independently, for electric door’s connection, which can be activated from remote extension or in the same keyboard. It can also be activated from external devices (such as card readers, biometric, proximity, etc.), since it has digital inputs to which buttons and sensors can also be connected.

It has a IP-55 casing and its installation versatility, they can be used outdoors and in hygienic environments that require constant cleaning. It is perfect for SOS points, access control multiple sites or doors, intercoms for gas stations, specific areas, hotels and hospital environments and other types of building (see common uses).

FeaturesProduct VersionsCommon uses

Available Versions*:

  • Surface or Flush Mount
  • Numeric keyboard or button
  • With IP color camera

General features:

  • Handsfree intercom with hanging and automatic hang-up
  • Direct Connection to analog of PBX EXT standard
  • With 2 independent dry contact relays. Ideal for doors that activate electrically or external devices (card readers, fingerprint, etc).
  • Opening doors remotely (activation of relays) with dailing code from any extension.
  • Anti-vandalism IP-55, for indoor or outdoor for hygienic environments or environmental conditions.
  • Keyboard type allowed open doors with code.
  • Wiring, needs 2 wires and AC power, in case a version with camera, so add 1 UTP

  • It works with all PBX that has a conventional analog EXT.

*Note: visit ‘ product’s versions’ to check references.

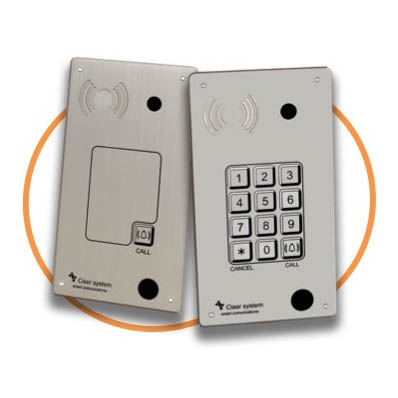

Analog Panphone Series 4 without Camera

Reference

4006

4003

4018

4015
Format Surface Flush Mount
Button or piezo-electric Keyboard 1 button Keyboard 1 button Keyboard
Dimensions (HxWxD) mm 187x104x32 External 217,41×128,8×8,6
Internal 180×91,40×30
Color Camera No

Analog Panphone Series 4 with Camera

Reference

4008

4005

4020

4017
Format Surface Flush Mount
Button or piezo-electric Keyboard 1 button Keyboard 1 button Keyboard
Dimensions (HxWxD) mm 187x104x32 External 217,41×128,8×8,6
Internal 180×91,40×30
Color Camera Yes
  • Centralized access control for different sites or doors.
  • For attended or unattended gateways
  • Care and geriatric environments.
  • Parking and tolls
  • Gas stations, unattended service stations
  • For evelators
  • Emergency intercom on the high way (SOS points)
  • Public transportation stations
  • Accessibility systems for reduced mobility people.
  • Intercom in prisons
  • For specific areas or emergency in hotels, hospitals and other types of builidng
  • Vending machines
  • Intercoms for operating rooms and hospitals, etc.
  • Public address system
Datasheet ENG
Quote request

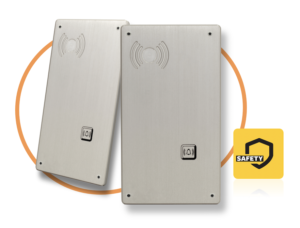

Analog Security Panphone

Posted: March 21, 2022

Anti-Vandalic Analog Security intercom

Anti-vandal Security intercom for standard Analog extension, high resistance and durability with piezoelectric with piezoelectric Call button, for outdoor or indoor use.

It is the Panphone anti-vandal security version, with a completely flat surface without holes, for specific security applications or applications that do not require a camera or card reader in the same device.

It allows automatic dialing to PBX standard extension by touching the piezoelectric call button.

It has 2 dry contact relays that work independently, for electric door’s connection, which can be activated from remote extension. It can also be activated from external devices (such as card readers, biometric, proximity, etc.), since it has digital inputs to which buttons and sensors can also be connected.

Thanks to its IP-55 casing and its installation versatility, they can be used outdoors and in hygienic environments that require constant cleaning.

It is perfect for security applications among other access applications, for example, exterior doors for buildings or houses, prisons, multiple office locations or doors, garages and hospital environments (see common uses).

FeaturesProduct VersionsCommon uses

General features:

  • Handsfree intercom with hanging and automatic hang-up
  • Flat surface without holes for flush mounting
  • A piezo-electric call button
  • Direct Connection to analog of PBX EXT standard
  • With 2 independent dry contact relays. Ideal for doors that activate electrically or external devices (card readers, fingerprint, etc).
  • Opening doors remotely (activation of relays) with dailing code from any extension.
  • Anti-vandalism IP-55, for indoor or outdoor for hygienic environments or environmental conditions.
  • Wiring, needs 2 wires and AC power, in case a version with camera, so add 1 UTP

  • It works with all PBX that has a conventional analog EXT.

*Note: visit ‘ product’s versions’ to check references.

Analog Security Panphone

Reference

5030
Format Flush Mount
Button or piezo-electric Keyboard 1 button
Dimensions (HxWxD) mm External 217,41×128,8×8,6
Interior 180×91,40×30
Camera No
Card Reader No
  • Centralized access control for different sites or doors.
  • For attended or unattended gateways
  • Care and geriatric environments.
  • Parking and tolls
  • Gas stations, unattended service stations
  • For evelators
  • Emergency intercom on the high way (SOS points)
  • Public transportation stations
  • Accessibility systems for reduced mobility people.
  • Intercom in prisons
  • For specific areas or emergency in hotels, hospitals and other types of builidng
  • Vending machines
  • Intercoms for operating rooms and hospitals, etc.
  • Public address system
